Fully Automatic Strapping Machine

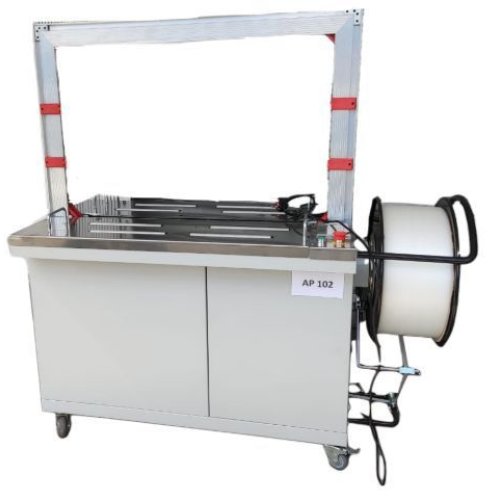

UPAMB2R Fully Automatic Strapping Machine
Send Enquiry

Product Details

Power Supply 3 phase , 220/380/415/440V, 50/60Hz
Straping Head Standard Type
Arch Size (WxH) 850 x 600 (mm) , 33.5 x 23.6 (in)
Strap band Width 9,12,15,19
Strapping Tension 0~70 (kg) , 0~154.3 (lb)
Max. Load 20 (kg), 44 (lb)
Strapping Speed 2.4 sec./ strap (25 strap/min.)
Working table height 810 (mm), 31.9 (in)
Machine Size (LxWxH) 1440 x 640 x 1535 (mm), 56.7 x 25.2 x 60.4 (in)

FEATURES :

  • Logic Relay Circuit
  • Sensors for automatic strapping
  • Belt type Strap Dispenser Brake
  • Trap dispenser with belt brake
  • Free Roller Tabletop
  • Mechanical Tension adjustment
  • Double cams for long lasting machine operation.
  • New generation heating element suitable for PP and PET strap use, requires less initial heating time.
  • PLC control integration
  • Detection for strap feeding not to strap position
  • Detection for no strap
  • PET strap sealing
  • Single Phase 1Ø , 110/220, 50/60Hz
  • Enhanced PCB for faster cycle speed. (up to 36 straps per minute)

Yes! I am interested


UPAPW860C Fully Automatic Strapping Machine
Send Enquiry

Product Details

Power Supply 3 phase , 220/380/415/440V, 50/60Hz
Straping Head Straping Head
Arch Size (WxH) 850 x 600 (mm) , 33.5 x 23.6 (in)
Strap band Width (mm) 9,12,15,19
Strapping Tension 0~70 (kg) , 0~154.3 (lb)
Strapping Speed 2.4 sec./ strap (25 strap/min.)
Max. Load 20 (kg) , 44 (lb)
Working table height 810 (mm), 31.9 (in)
Machine Size (LxWxH) 1476 x 689 x 1644 (mm) , 58.1 x 27.1 x 64.7 (in)

Feature :

  • Logic Replay circuit
  • Belt type Strap Dispenser Brake
  • Access doors with safety switches
  • Mechanical Tension adjustment
  • Double cams for long lasting machine operation.
  • New generation heating element suitable for PP and PET strap use, requires less initial heating time.
  • PLC control integration
  • Detection for strap feeding not to strap position
  • Detection for no strap
  • PET strap sealing
  • Single Phase 1Ø , 110/220, 50/60Hz
  • Enhanced PCB for faster cycle speed. (up to 36 straps per minute)
  • PLC control integration
  • Detection for strap feeding not to strap position
  • Detection for no strap
  • PET strap sealing
  • Single Phase 1Ø , 110/220, 50/60Hz
  • Enhanced PCB for faster cycle speed. (up to 36 straps per minute)

Yes! I am interested


UPASIDE207 Fully Automatic Strapping Machine
Send Enquiry

Product Details

Power Supply 3 phase , 220/380/415/440V, 50/60Hz
Straping Head Standard Type
Arch Size (WxH) 600 x 850 (mm), 23.6 x 25.6 (in)
Strap band Width (mm) 9,12,15,19
Strapping Tension 0~70 (kg), 0~154.3 (lb)
Strapping Speed 2.4 sec./ strap (25 strap/min.)
Sealing point 692 (mm), 27.2 (in)
Machine Size (LxWxH) 1425 x 630 x 1724 (mm)

FEATURES :

  • Easy operation.
  • Easy maintenance.
  • Aluminum Arch, Fully Automatic, Side Seal



Mechanical Aspect :

  • Precise strapping
  • Robust structure
  • Easy to replace strap
  • PLC control integration
  • Detection for strap feeding not to strap position
  • Detection for no strap
  • PET strap sealing
  • Single Phase 1Ø , 110/220, 50/60Hz
  • Enhanced PCB for faster cycle speed. (up to 36 straps per minute)



Mechanical Aspect :

  • Pneumatic top press mechanism (Tighter strapping)
  • Other arch size made on request
  • PET strap
  • Dispenser I.D. 9" (230mm)
  • Extension conveyor
  • Casters with brake

Yes! I am interested


UPATP600D Fully Automatic Strapping Machine
Send Enquiry

Product Details

Strap Width 8 mm, 9 mm, or 12 mm
Strap Thickness 0.55 mm - 0.75 mm
Tension Range 7 - 45 kg *up to 70 kg on request
Capacity Up to 29 cycles/minute
Weight 220 kg
Electrical Requirements 110V, 220V, 230V, 240V 50/60Hz 1PH & 220V, 380V, 400V, 415V 50/60Hz 3PH

FA-02-SRHDT is an enhanced automatic strapping machine for PP strapping. With the value-added features, THIS is the most powerful machine with the best price to performance ratio product in its category for general applications.



Features :

  • Reliable and robust strapping head
  • Electronic tension control
  • Auto strap feeding
  • Auto strap ejector
  • Short feed sensor
  • Auto strap refeed
  • Strap end ejector
  • Multiple methods of cycle initiation



Options :

  • Smoke exhaust system with carbon filter
  • Emergency stop switch
  • Table without free roller
  • PU casters
