Options:- Indexing and centering device- Tape end / breakage detection- Castor wheelsThe CT 305 SDRF is a fully automatic carton sealer, suitable for PP and PVC tape. The machine automatically adapts to different box sizes, folds the top flaps of the box and simultaneously seals the top and bottom flaps. As a result, the closing of the boxes is fully automatic and efficient, without the need for operator supervision.
The filled boxes usually come from a motorized conveyor belt with the bottom flaps folded and the top flaps open. The boxes are transported by means of motorized side conveyors to guarantee a perfect seal.
With the CT 305 SDRF it is possible to professionally close hundreds of packages per day.
For PP and PVC tape 50 mm
In the packaging industry, tape is often used to seal boxes. Taping is therefore of great importance in the damage free storage and shipping of your products, so they arrive at your customer in perfect condition. Taping machines from Cyklop ensure a reliable and efficient taping process and are easy to set up and operate. The (semi-)automatic taping machines can be operated separately but are also perfectly integrable with other Cyklop machines in your packaging line. The CT 305 SDRF is a full automatic case sealer suitable for PP and PVC tape. The machine automatically adapts to different box sizes, folds the top flaps of the box and seals the top and bottom flaps simultaneously. This makes the box closing process completely automatic and efficient, without needing supervision of an operator. Filled boxes usually arrive from a motorized conveyor line with the bottom flaps folded and the top flaps open. The boxes are transported by motorized side belts to guarantee a perfect box sealing. With the CT 305 SDRF, it is possible to professionally close hundreds of packages per day.

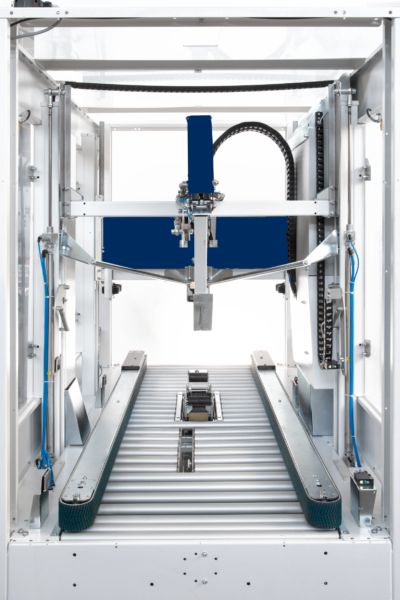

Technical data: Box length (mm) Box width (mm) Height (mm) Performance (Boxes/h) Box sealing Conveyor height Conveyor speed Compressed air Air consumption Power supply Tape Tape width Inside view of CT 305 SDRF Standard version of the CT 305 SDRF 220 - 600 120 - 510 120 - 510 up to 480 Top and bottom, or top only 650 mm 27 m/min 6 bar 30 Nl/ cycle 400V/50Hz/3Ph/0,55kW PP or PVC tape 50 mm (optional 75 mm) Machine dimensions LxWxH (mm) Machine weight (kg
