Fully Automatic Case Sealer: CT 105 SDR

The CT 105 SDR is an automatic carton sealing machine suitable for PP or PVC tape. The CT 105 SDR is suitable for integration into an automatic packing line.

For 50 mm or 75 mm PP and PVC Tape

Automatic adaption to width and height

Drive belt speed of 23 metres per minute

Side drive

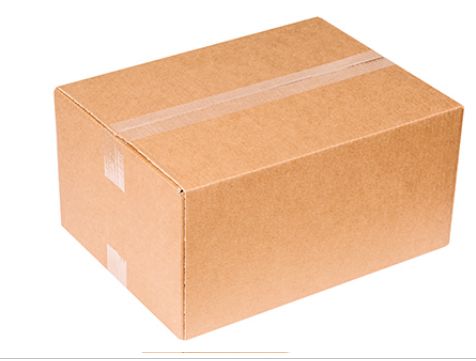

Taping is the application of an adhesive tape on, for example, a box or other surface. In the packaging industry, tape is often used to close something, in most cases a box or package. In addition, tape is also used to bundle products, to mark, to communicate a message or to prevent theft. The ultimate goal of taping is to store and/or send your products without damage, so that they end up in perfect condition with your customer. Packaging tape or tape can be applied manually, with a table dispenser or with a box closer. Machine with manual entry The CT 105 SDR is an automatic taper suitable for PP or PVC tape from 50 mm to 75 mm. After filling the box, the operator folds the flaps, closes the box and feeds the box manually into the machine. The bottom and top are then automatically sealed with tape. The machine automatically  adjusts itself to the required width and height. The boxes are transported by motorized side conveyor belts, so that the boxes are perfectly aligned and a good seal is guaranteed. With the CT 105 SDR it is possible to professionally close hundreds of packages per day.

Technical specifications:

Dimensions of machine (HxWxD) Sealing Consumables Tape - outer roll diameter Tape - core diameter Tape - width Pack size - length Pack size - width Pack size - height Capacity Transport Air pressure Power 1,550 x 1,160 x 1,030 mm Bottom and top PP / PVC Tape 350 mm (max) 76 mm 50 - 75 mm min 120 mm - max ∞ 110 mm - 600 mm 120 mm - 600 mm 800 packages / hour Side - 23 meters /  hour 6 Bar 220 V / 50 Hz / 1 phase Weight 110 kg

Tape machines are available in various shapes and sizes. Depending on your requirements, we offer semi-automatic or (fully) automatic solutions.

A semi-automatic tape machine is suitable for closing series of boxes of the same size. The machine can be set manually to the desired format, which is less convenient with many changing formats. An automatic tape machine does the same and is suitable for mixing boxes of various sizes together. After all, with a fully automatic tape machine, no operator is needed anymore. This machine does its work fully automatic.

Features

• Automatically adjustment of different carton width and height
• Automatically convey & seal carton Top & Bottom
• Automatic folding of top flaps
• Side Belt Drive
• Can be connected with fully automatic production Line
• Precision sealing of tape which leads to uniform and clean finish on the box
• With infeed and outfeed conveyor (Optional )
• Auto-cut feature (Optional)
• Safety guard for preventing injury
• Control Panel for command accuracy
